Antennas and arrays for 5G, 5G+, and 6G, radar and satellite communications

Antennas and arrays play a critical role in the design and implementation of 5G, 5G+, and 6G wireless communication systems, as well as in radar and satellite communications. Here are some key points to keep in mind regarding antennas and arrays in these contexts:

Antennas and Arrays for 5G

The development of 5G wireless communication systems has presented new challenges for antenna and array design. 5G systems typically operate at higher frequencies than previous wireless technologies, typically in the millimeter-wave (mmWave) frequency range between 24 GHz and 40 GHz. These higher frequencies allow for higher data rates and more capacity, but they also present new design challenges such as increased signal attenuation due to atmospheric absorption and higher path loss due to shorter wavelengths.

To overcome these challenges, 5G antennas and arrays often use advanced technologies such as beamforming, massive MIMO, and intelligent reflecting surfaces (IRS) to enhance signal strength and quality.

Beamforming is a technique used to focus the transmitted or received signals in a specific direction or towards a specific target. This technique can be used to enhance signal strength, reduce interference, and increase the range and capacity of communication systems. Beamforming can be implemented using an array of antennas, where each antenna element is controlled by a separate phase shifter to create constructive interference in the desired direction and destructive interference in other directions.

Massive MIMO is another advanced technology used in 5G systems. This technology uses an array of antennas to transmit and receive multiple data streams simultaneously, which can significantly increase the capacity and spectral efficiency of the system. Massive MIMO requires sophisticated signal processing algorithms to separate the different data streams and to mitigate interference between them.

Intelligent reflecting surfaces (IRS) are a new technology that is being developed for 5G systems. These surfaces consist of a large number of small elements that can reflect and manipulate the incident electromagnetic waves. By controlling the phase and amplitude of the reflected waves, an IRS can be used to enhance signal strength, improve coverage, and reduce interference in the system.

Antennas and Arrays for 5G+

As wireless communication systems continue to evolve beyond 5G, antennas and arrays will need to be designed to operate at even higher frequencies, potentially in the terahertz (THz) range. This will require the development of new materials and fabrication techniques to enable antennas and arrays that are small, lightweight, and capable of operating at high frequencies with low losses.

Advanced beamforming and MIMO techniques will also be necessary to achieve the high data rates and low latency required by future wireless applications. One potential technology for achieving these goals is the use of metasurfaces, which are artificially engineered surfaces that can manipulate electromagnetic waves in novel ways.

Metasurfaces consist of a two-dimensional array of subwavelength elements that can be designed to have specific properties, such as phase and amplitude. By controlling the properties of these elements, a metasurface can be used to create highly directional beams, to focus or scatter electromagnetic waves, or to perform other advanced signal processing functions.

Metasurfaces are a promising technology for 5G+ and 6G communication systems because they can be fabricated using existing semiconductor manufacturing techniques, and they can be integrated with other electronic components to create highly integrated communication systems.

Antennas and Arrays for 6G Communication Systems:

6G communication systems are currently in the research and development stage, and they are expected to provide even higher data rates and lower latency than 5G and 5G+ systems. 6G systems will also need to operate at higher frequencies, potentially in the terahertz range, which will require the development of new antenna and array technologies.

One of the key challenges in 6G system design will be achieving high data rates and low latency while operating at such high frequencies. Terahertz waves have a much shorter wavelength than microwaves, which makes them more susceptible to attenuation and scattering.

To overcome these challenges, new antenna and array technologies will need to be developed that can operate at high frequencies with low losses and high gain. Metamaterials, which are artificial materials with unique electromagnetic properties, are one technology that is being investigated for use in 6G communication systems.

Metamaterials can be used to create antennas and arrays that can operate at terahertz frequencies with high gain and low loss. Metamaterial antennas and arrays can also be designed to be compact and lightweight, which is important for mobile and wearable applications.

Antennas and Arrays for Radar Systems

Radar systems use antennas and arrays to transmit and receive electromagnetic signals that are used to detect and locate objects in their vicinity. Radar antennas and arrays must be designed to operate at specific frequencies and with specific beam patterns to enable accurate detection and localization of targets.

In general, radar antennas and arrays must be capable of transmitting high-power signals with low loss, and receiving weak signals with high sensitivity. One of the key challenges in radar system design is achieving high resolution and accuracy in target detection while minimizing interference and noise.

To achieve these goals, radar antennas and arrays often use advanced technologies such as phased arrays, active electronically scanned arrays (AESAs), and synthetic aperture radar (SAR).

Phased arrays are a type of antenna array where the phase and amplitude of each antenna element can be controlled independently to produce a beam that can be steered in different directions. Phased arrays offer several advantages over traditional antenna arrays, including faster beam switching times, higher spatial resolution, and reduced interference.

Active electronically scanned arrays (AESAs) are a type of phased array that use active components such as amplifiers and phase shifters to control the phase and amplitude of each antenna element. AESAs offer even greater flexibility and performance than traditional phased arrays, and they are commonly used in modern radar systems.

Synthetic aperture radar (SAR) is another advanced technology used in radar systems. SAR is a signal processing technique that can be used to create high-resolution images of targets by combining multiple radar echoes collected from different positions. SAR can be used to create detailed images of the terrain, to detect changes in the environment, and to locate and track moving targets.

Antennas and Arrays for Satellite Communications

Satellite communications systems use antennas and arrays to transmit and receive signals between ground stations and orbiting satellites. These systems must be designed to operate in the harsh environment of space, where there is no atmosphere to attenuate or scatter the signals.

Satellite antennas and arrays must also be capable of transmitting and receiving signals over long distances with low loss and high gain. One of the key challenges in satellite communication system design is achieving high data rates and low latency while minimizing interference and noise.

To achieve these goals, satellite antennas and arrays often use advanced technologies such as parabolic reflectors, phased arrays, and helical antennas.

Parabolic reflectors are large dish-shaped antennas that use a curved surface to focus the transmitted or received signals. Parabolic reflectors offer high gain and low loss, and they are commonly used in satellite communication systems for long-range communication.

Phased arrays can also be used in satellite communication systems to improve performance and reduce interference. Phased arrays offer faster beam switching times and better spatial resolution than traditional reflector antennas, and they can be used to create multiple beams that can be directed towards different ground stations.

Helical antennas are another type of antenna commonly used in satellite communication systems. Helical antennas are small and lightweight, and they can be designed to operate over a wide frequency range with high gain and low loss. Helical antennas are often used in satellite communication systems for telemetry and control functions.

Beamforming:

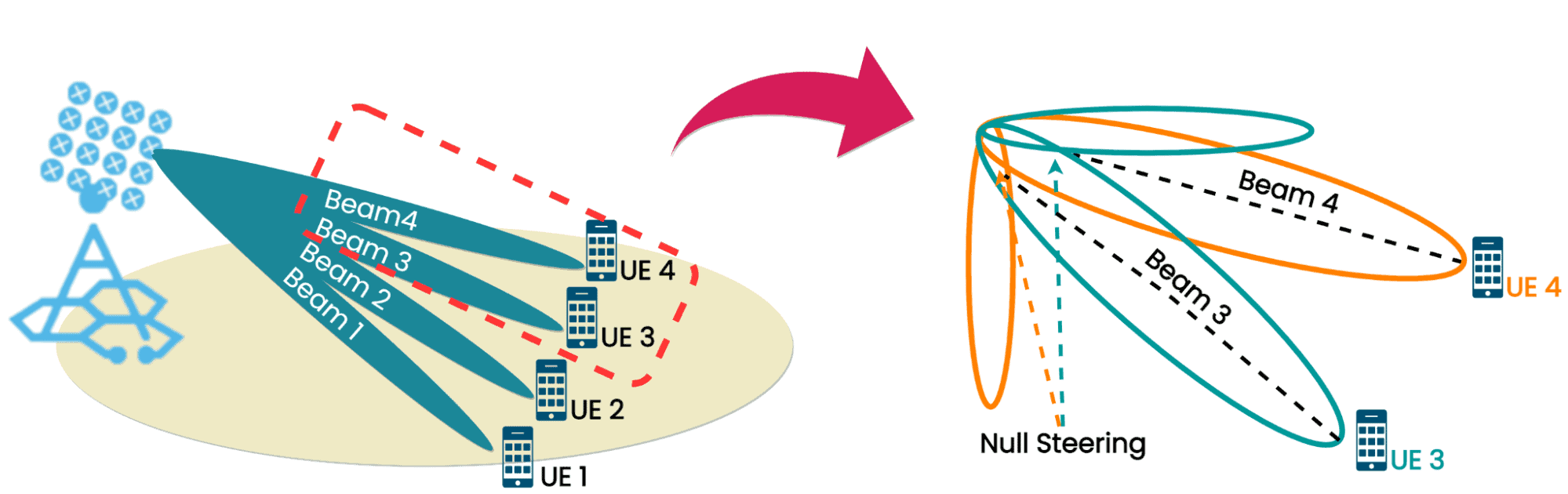

Beamforming is a technique used in wireless communication systems that allows directional transmission and reception of signals. Beamforming enables a higher signal-to-noise ratio (SNR), which improves the overall performance of the system.

Beamforming is achieved by using an array of antenna elements that are connected to a signal processing system. The signal processing system controls the phase and amplitude of each antenna element, which allows the system to steer the transmitted or received signal in a specific direction.

In 5G and 5G+ communication systems, beamforming is used to improve coverage and capacity. Massive MIMO (multiple input multiple output) is a key technology used in 5G and 5G+ communication systems that employs beamforming to achieve high data rates and low latency.

Massive MIMO is a technique that uses a large number of antenna elements to create a large number of beams that can be directed towards multiple users simultaneously. Massive MIMO offers several advantages over traditional MIMO systems, including higher spectral efficiency and lower power consumption.

Intelligent reflecting surfaces (IRSs) are another advanced technology that is being developed for 5G and 6G communication systems. IRSs use a large number of small reflecting elements that can be controlled individually to reflect the transmitted or received signals in a specific direction.

IRSs offer several advantages over traditional beamforming techniques, including lower power consumption, higher flexibility, and lower cost. IRSs can also be used to improve coverage and capacity in indoor and outdoor environments.

Conclusion:

Antennas and arrays are critical components of modern communication systems, including 5G, 5G+, and 6G wireless communication systems, radar systems, and satellite communication systems. Advanced technologies such as beamforming, massive MIMO, and intelligent reflecting surfaces are being developed for 5G and 5G+ systems to enhance signal strength and quality.

Radar systems use advanced technologies such as phased arrays, AESAs, and SAR to achieve high resolution and accuracy in target detection while minimizing interference and noise. Satellite communication systems use advanced technologies such as parabolic reflectors, phased arrays, and helical antennas to achieve high data rates and low latency over long distances.

As wireless communication systems continue to evolve beyond 5G, antennas and arrays will need to be designed to operate at even higher frequencies, potentially in the terahertz range, and with even greater flexibility and performance. The development of new antenna and array technologies, such as metamaterials, will be critical for the success of future communication systems.
